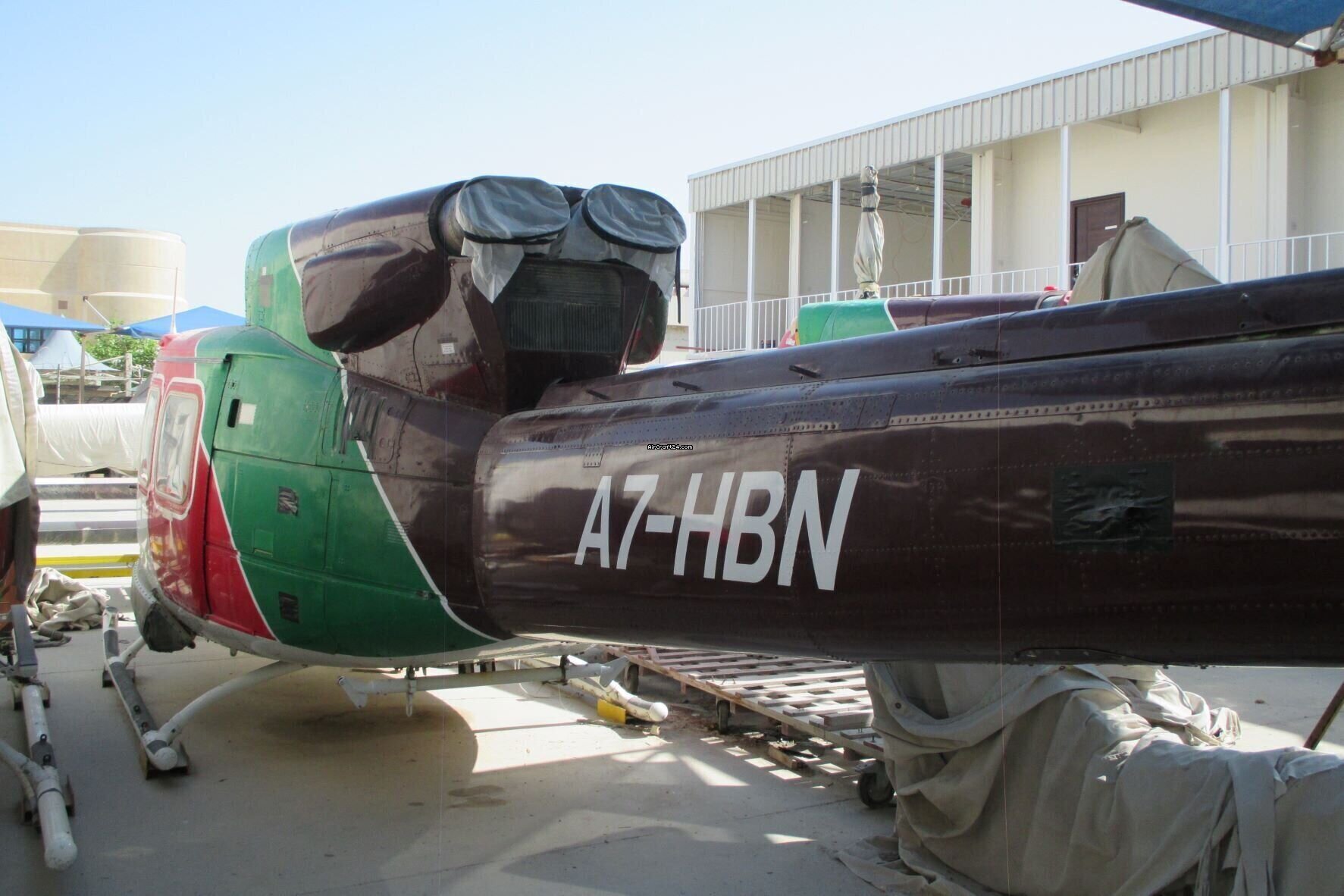

Bell 212 |
Preis auf Anfrage |
Übersicht
| Übersicht | | Typ: | Helikopter (Turbine) | | Hersteller: | Bell | | Modell: | 212 | | Baujahr: | 1980 | | RegistrierungsNr.: | A7-HBN | | Serien-Nr.: | 31130 | | Standort: | Qatar, Doha | | Gesamtzeit (TTAF): | 13265 h | | Preis: | Preis auf Anfrage | | Alle Details |
| Anbieter |
Feilhauer Aircraft Sales
P.O. Box 87
CH-1217 Meyrin 1
Schweiz
Tel.: +41 22 782 98 00
Fax: +41 22 782 98 11 |
| Kontakt zum Anbieter |
|
|
|
Details
| Übersicht | | Typ: | Helikopter (Turbine) | | Hersteller: | Bell | | Modell: | 212 | | Baujahr: | 1980 | | RegistrierungsNr.: | A7-HBN | | Serien-Nr.: | 31130 | | Standort: | Qatar, Doha | | Gesamtzeit (TTAF): | 13265 h | | Preis: | Preis auf Anfrage |
| Motor(en) | | Anzahl Motoren: | 2 | | Hersteller/Modell: | Pratt & Whitney PT6T-3B |
| Avionik | - Dual Panel Cockpit Instruments
- Two King KTR-905 VHF Radios
- Two King KDF-805 ADF
- King KNR-630 VOR/ILS
- King KDM-705 DME
- King MKR-675 Marker
- King KXP-755 Transponder with Mode C
- Sperry AA300 & AVAD Radio Altimeter
- Garmin 165 Area Navigational Aid GPS
- Cockpit Voice Recorder
- Marine VHF FM NAT 150
- Flight Crew / Passenger Intercom System
- ELT 406 |
| Ausstattung | - Dual Controls
- Rotor Brake
- Undersling Load Hook and Role Equipment Provisions
- Stretcher Provisions
- Emergency Flotation Gear
- 2 x 10 man Reversible Liferafts and Survival Packs
- Crew Lifejackets with Emergency Sarbe Beacons
- 13x Passenger Lifejackets
- Two Fire Extinguishers
- First Aid Kit |
| Exterieur | | - Paint : White, Red, Green and Brown |
| Interieur | | - Standard Seats |
| Stand Inspektion | - Helicopter is unserviceable, due for D-Check and currently under Preservation/Storage.
Description / TSN-TSO / Time Remaining
- Main Rotor Blade / --- / Removed
- Main Rotor Blade / --- / Removed
- Main Rotor Hub Assy / --- / Removed
- Main Rotor Mast / --- / Removed
- Main Transmission / 4.540,10 / 1.459,90
- Scissor and Sleeve Assy / 489,00 / 511,00
- Swashplate Assy / 488,00 / 512,00
- 42° Gearbox / --- / Removed
- 90° Gearbox / --- / Removed
- Tail Rotor Hub / --- / Removed
- Tail Rotor Blade / --- / Removed
- Tail Rotor Blade / --- / Removed
- Power Section 1 / --- / Removed
- Power Section 2 / --- / Removed
- Combining Gearbox / --- / Removed |
| Bemerkungen/Sonstiges | | - If some of the components which have been removed are required, they can be delivered with the helicopter and price adjusted accordingly. |
